Summary:
- Dual-Channel Wireless Receiver
- Consists of One Transmitter and One Receiver
- UHF transmission with 48UHF channels
- Ideal for ENG/EFP, DSLR Video
- Broadcast-Quality Sound
- Operation range can reach up to 100m
- Adjustable MONO and Stereo mode
- Powered by one 2 x AA batteries for both transmitter and receiver
The BOYA BY-WM8 Pro-K1 is upgraded addition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

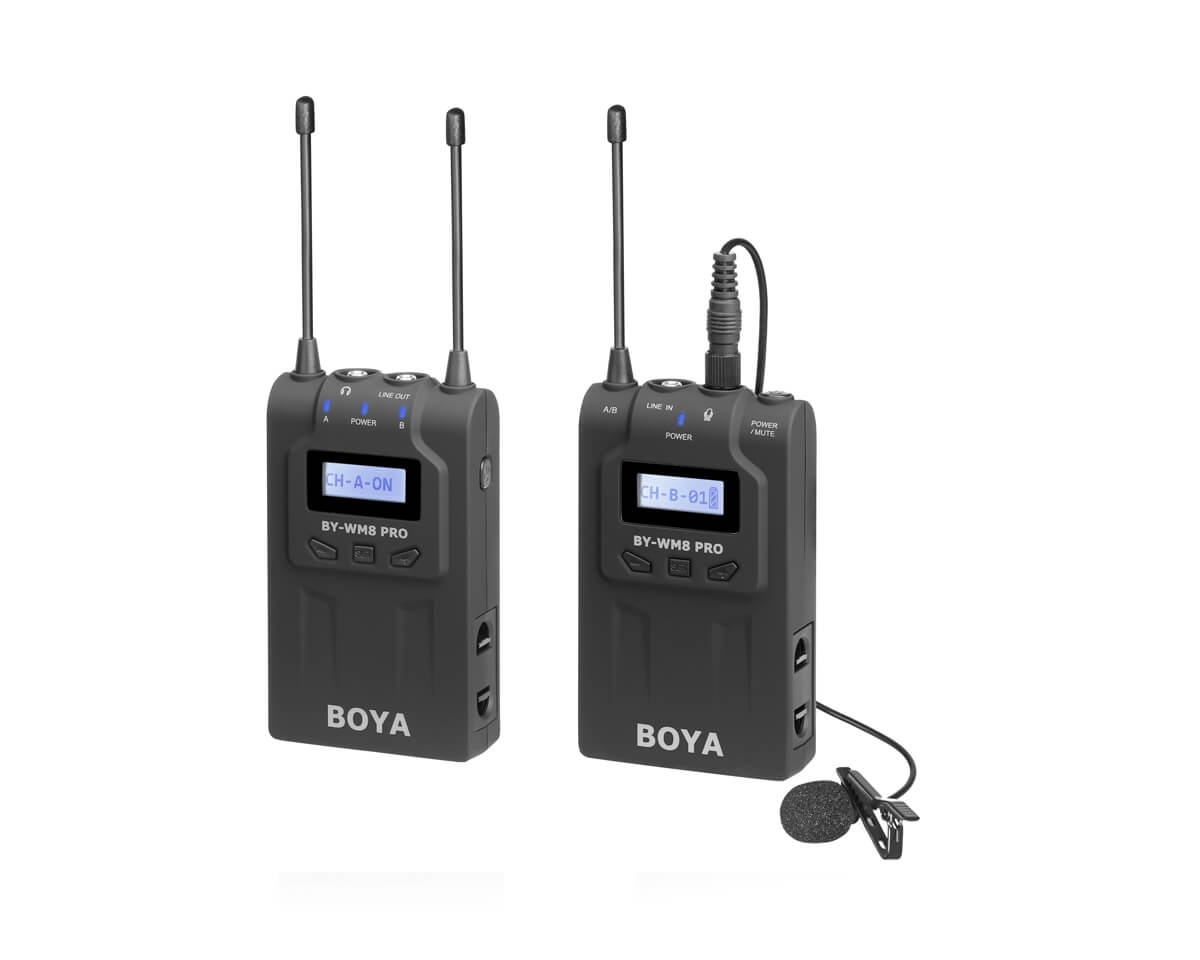

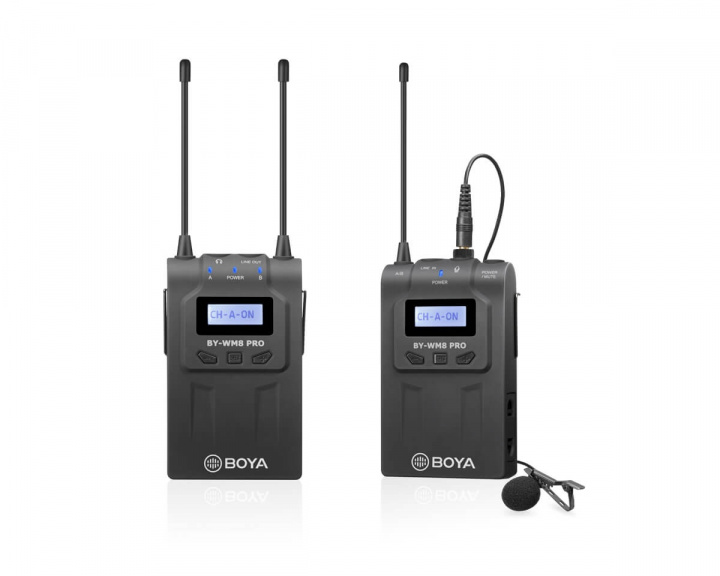

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8"" to XLR output cable, a single 3,5 mm to 3,5 mm output cable, carrying case.

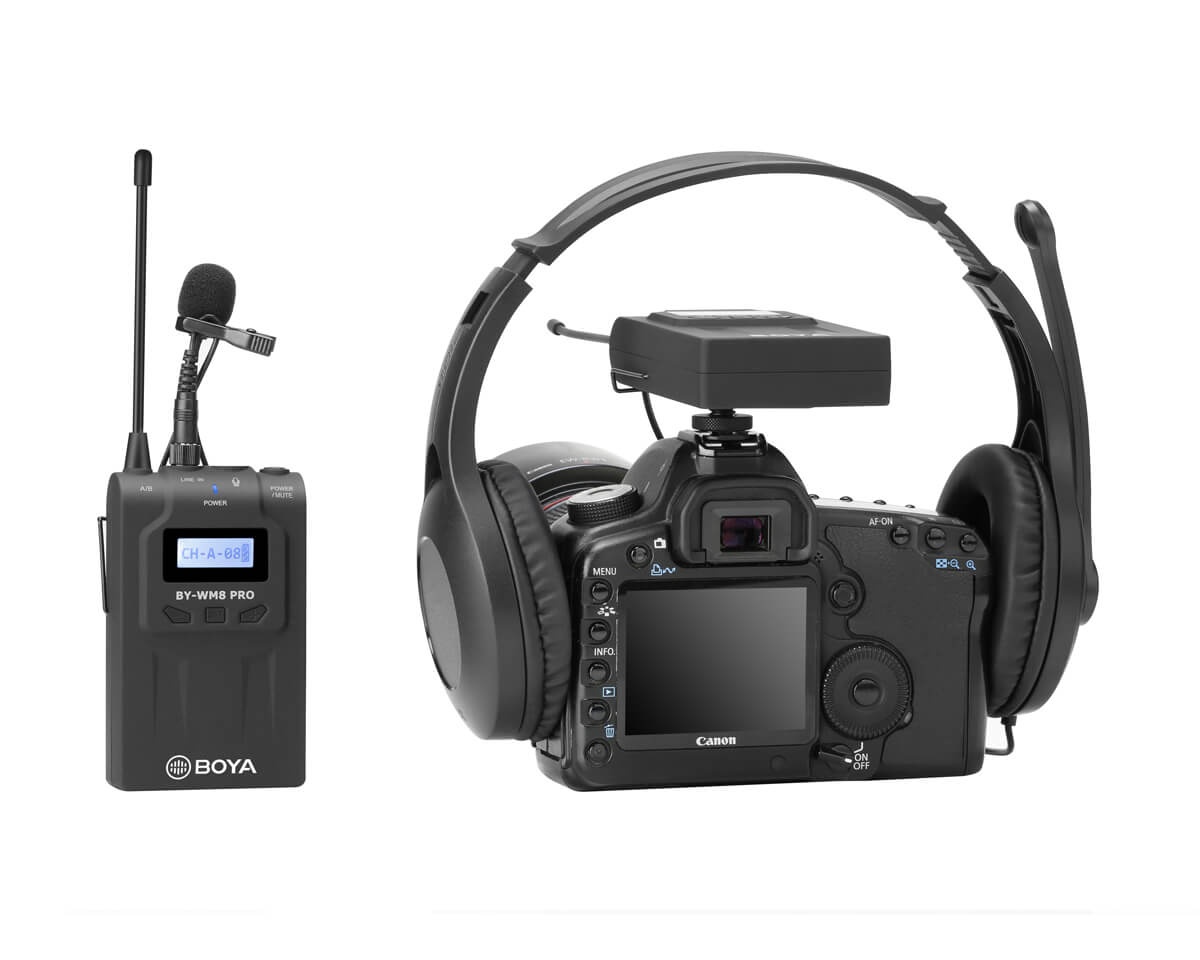

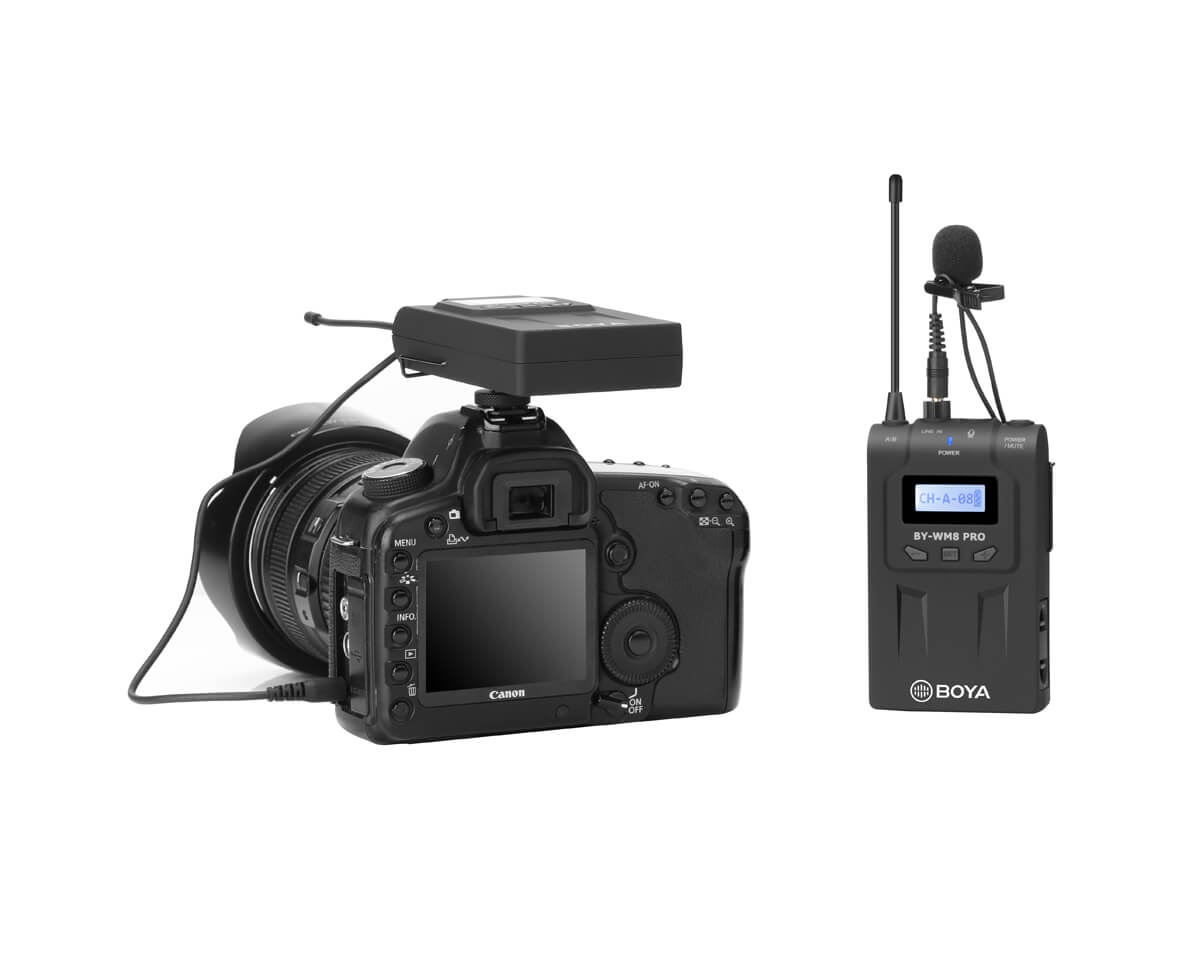

The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 3,5 mm mic input and a 3,5 mm line-in jack.
The system has also a user-friendly menu operation with more control options. A Auto-Lock function avoids accidental changing of settings.
Specifications
Oscillator type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 556.71 MHz-575.98 MHz (Transmitter: A )
576.39 MHz-595.66MHz (Transmitter: B )
Channels: 48
Frequency response: 40 Hz to 18 kHz (+/-3dB)
Operation range: 100m (300')(without obstacle)
Antenna: 1/4? wire antenna
Audio input connector: 3.5mm mini jack
Signal to noise ratio: 70dB or more
Distortion: 0.5% or less
Headphone output level: 30mW(16O)
Audio output level: -60dBV
Power supply. Two AA size batteries
Operation time: About 4 hours
Dimensions: 208(H) × 67(W) × 29(L)mm
Weight: 90g without batteries
Tuotenumero
Tuotenumeromme: 14018
Valmistajan tuotenumero: BY-WM8-Pro-K1
Tietoa tuotemerkistä
Tekniset tiedot
Mikrofonin
Taajuusalue | 35-18000 Hz |
Herkkyys | 30 dB |
Mikrofonityyppi | Omnidirectional |
Mitat & paino
Leveys | 67 mm |
Syvyys | 29 mm |
Korkeus | 208 mm |
Paino | 90 g |
Ominaisuudet
Väri | Musta |
Takuu
Takuu | 1 vuoden takuu |
