Lanberg LSA-työkalut LSA-kruunuille ja listoille


6.22

Lisää ostoskoriin
Varastossa
Saatavuus:
jäljellä varastossa
60 päivän avokauppa

Tuotekuvaus

TietokonetarvikkeetPC-komponentitTyökalut Lanberg

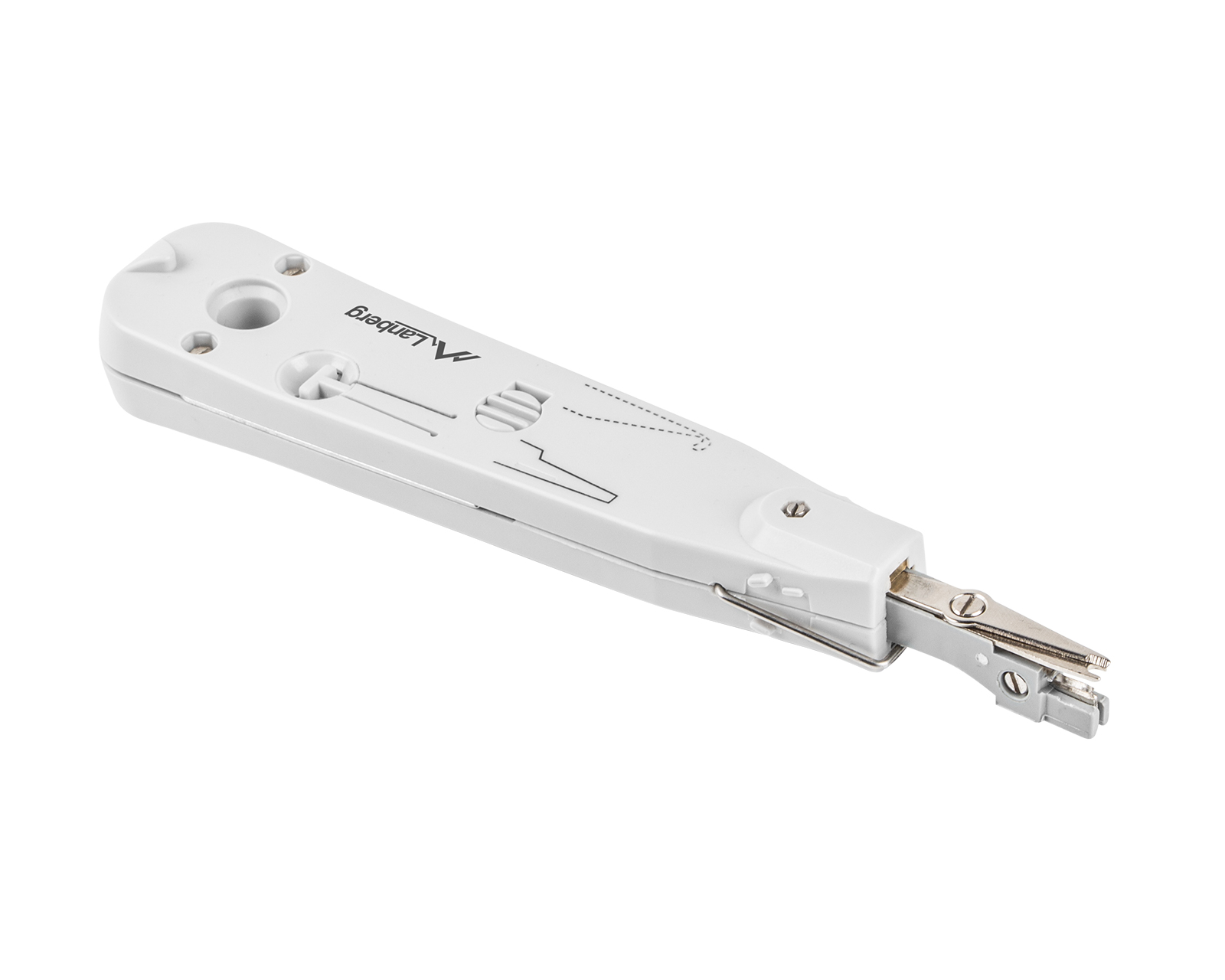

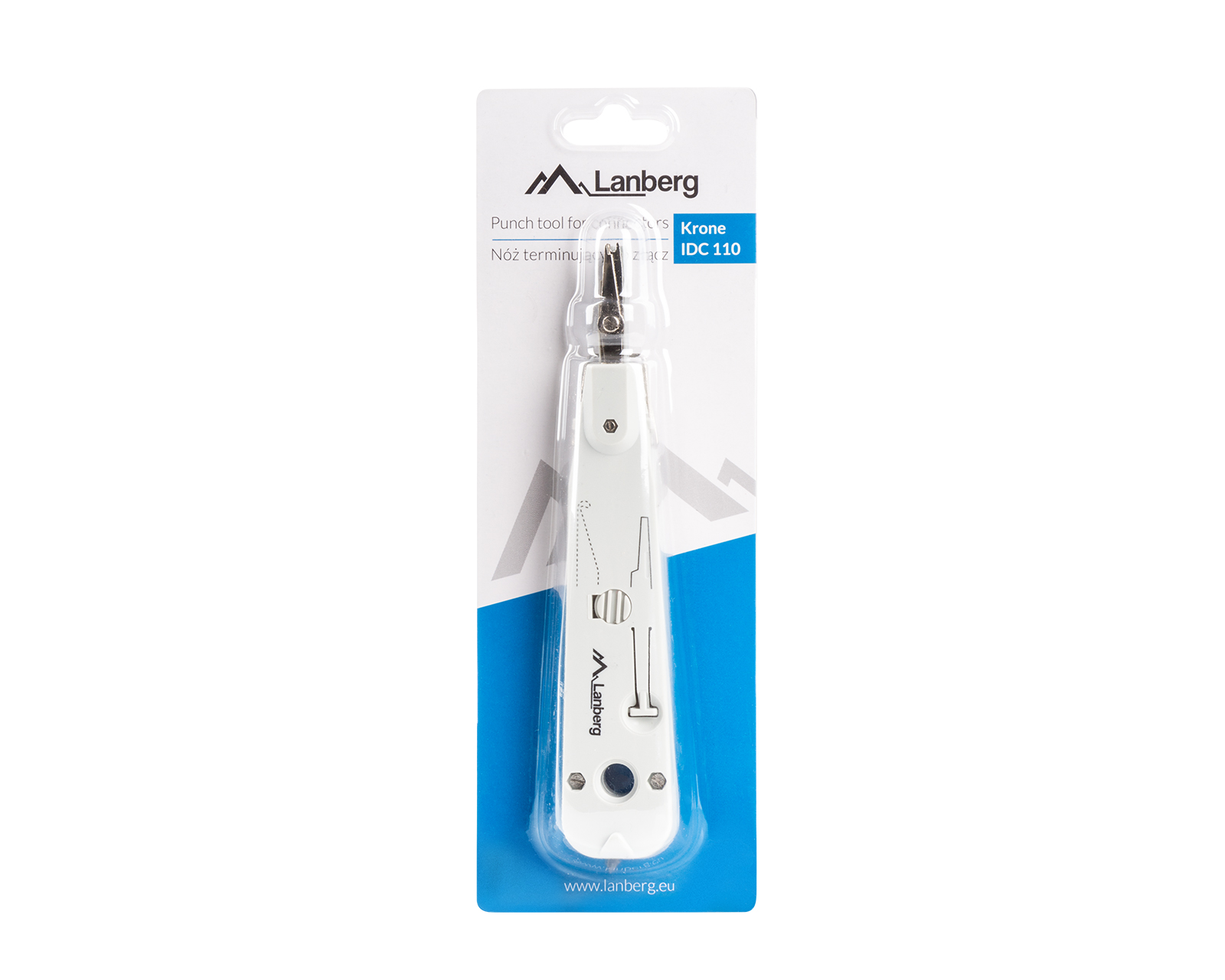

Lanberg’s insertion tool (also known as punch tool) for Krone IDC 110 connectors and LSA connections is used for crimping/terminating network cables in accordance with LSA technology, used in practice, to perform the cable terminations for the purposes of flush and surface mount data boxes, ICT surface boxes, patch panels and many other devices dedicated mainly for telecommunication installations.

The device is ideally suited for LSA sockets used in xDSL and ISDN networks, as well as, for the cables with LSA connectors and blocks of telephone connector panels. Due to the fact, that a single wire cannot be in insulation, the LSA technique of stripping the insulation eliminates this particular problem, which translates to the practical use of this product.

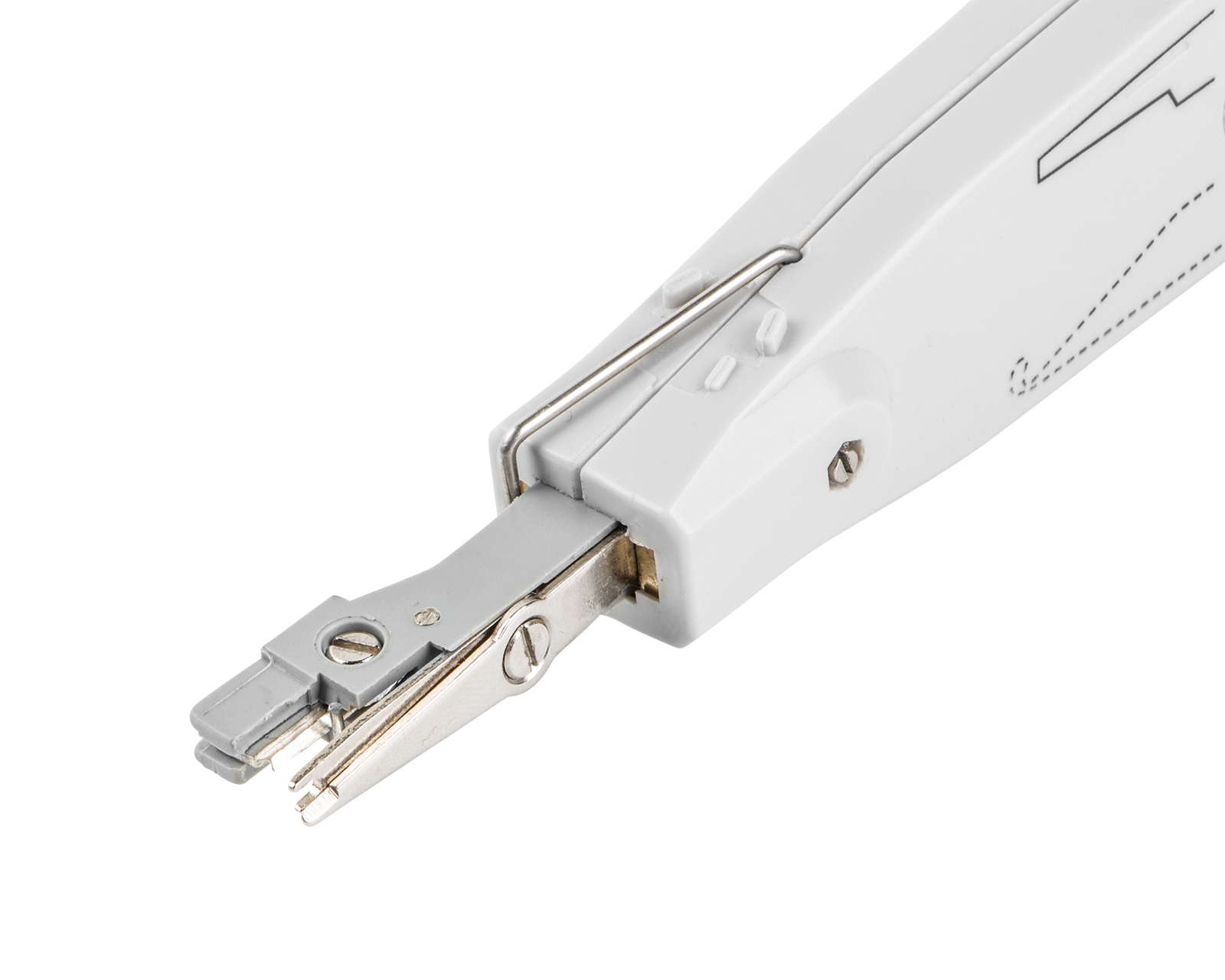

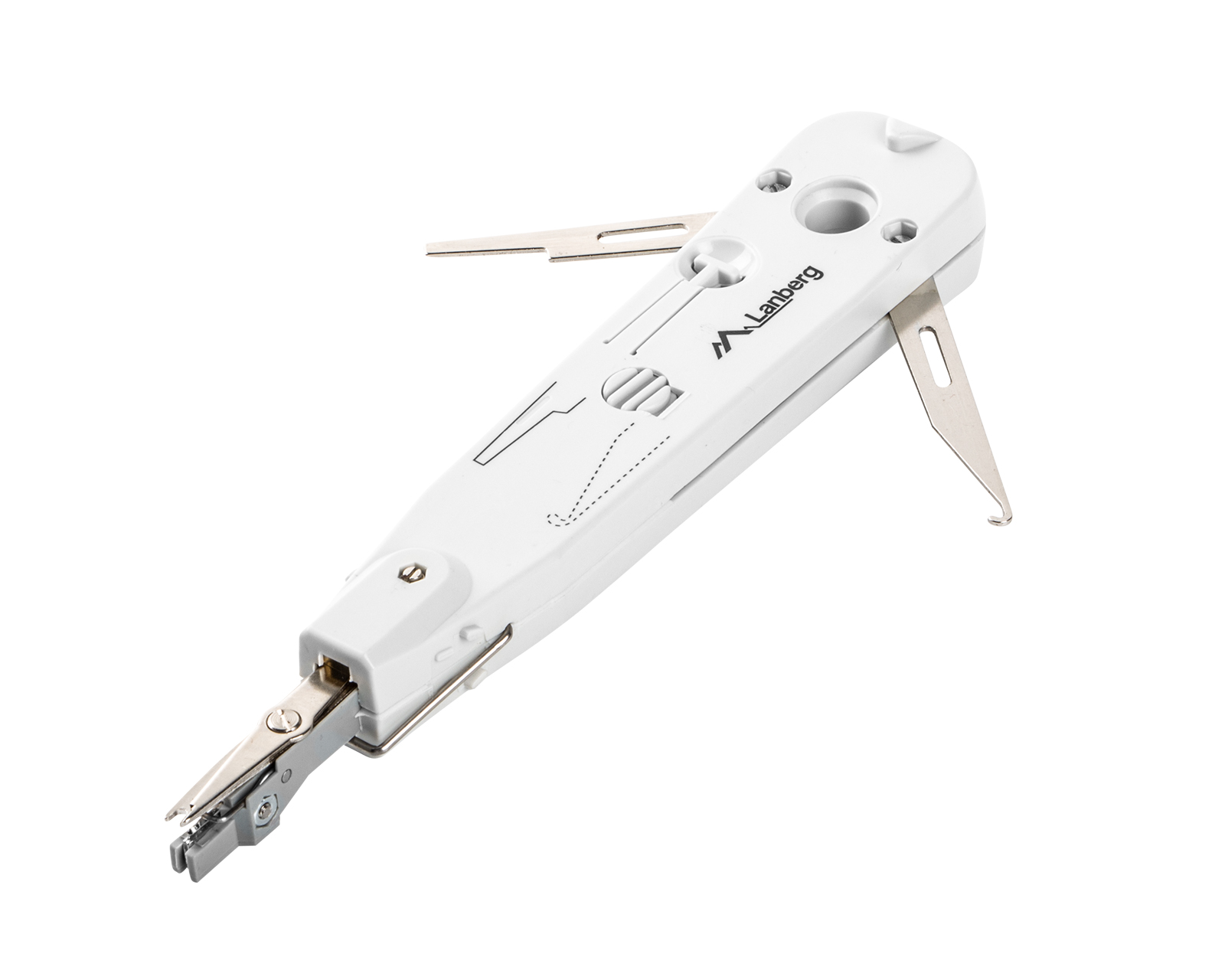

NT-0001 has a spring that ensures proper tightening of the wire veins to the contact, a hook for pulling out the veins, along with the element to remove the connector from the socket and shears to cut off the excess cable (equipped with a blockade and impact force regulator) - the depth of pressing the wire into the connector.

With the use of Lanberg’s insertion tool (aka LSA Punch tool) the proper cable preparations will become much simpler and the crimping process itself will significantly reduce the time, as compared the manual trials or some other methods.

Product specification:
- In accordance with EIA/TIA 568 B standards.
- Allows connection of cables with a diameter of: 0.35mm ~ 0.9mm and 0.7mm - 2.6mm.
- Color: white.

Tuotenumero

Tuotenumeromme: 17709
Valmistajan tuotenumero: NT-0001

Tietoa tuotemerkistä

Lanberg tarjoaa kaapeliratkaisut jokaiselle. Termit kehitys ja joustavuus ovat omiaan kuvailemaan Lanbergia, joka on erikoistunut toimittamaan erilaisia verkko- ja kaapelointiratkaisuja. Laaja tuotevalikoima kehittyy koko ajan, ja yritys huolehtii tuotteidensa laadun jatkuvasta parantamisesta. Lanbergin kyky tarjota markkinoille kulloinkin ajankohtaisia tuotteita on siivittänyt yrityksen tasaiseen kasvuun.

Jos etsit kaapelia tai adapteria, löydät suurella todennäköisyydellä etsimäsi Lanbergin laajasta tuotevalikoimasta. Tarjolla on myös kaapelointikokonaisuuksia, mukaan lukien LAN:in ja kaapelisarjat, sekä laitteita LAN-verkkoinfran rakentamiseen. Löydät myös laitteet ja tuotteet, joiden avulla kaapeloinnit on helppo tehdä oikein.

Tekniset tiedot

Ominaisuudet

Väri Harmaa

Takuu

Takuu 2 vuoden takuu
